V Type Mixer - VORTEX Mixing Technology

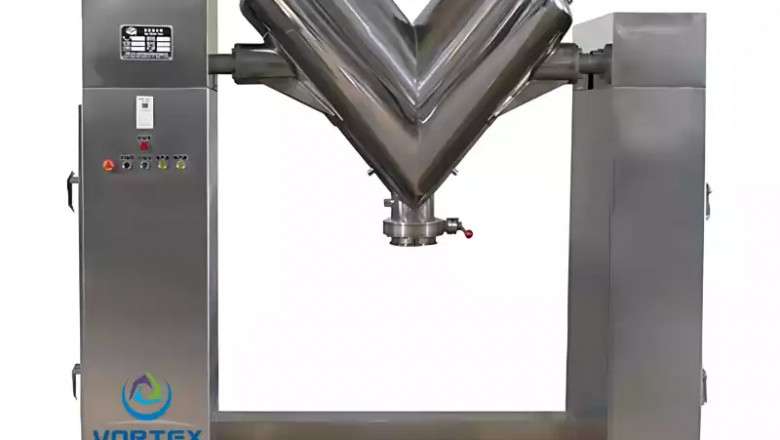

Vortex V Type Mixer uniformly displace materials for a complete blending of products via the intermeshed action of two inclined cylinders attached together in the form of a “V”. This results in precise blending with short mix cycles. Tumble blending is most suited to products of uniform product size and density, and where requirements for fast, thorough cleaning are desirable in sanitary applications.
For applications requiring dispersion of minor ingredients, and/or breaking up materials, which tend to form agglomerates, the blender can be equipped with a solids intensifier bar (beater or pin type), which is designed for ease of removal.
For incorporation of liquids, the intensifier bar shaft is hollow, and equipped with a feed tube to dispense liquid between the beater bar discs in a finely atomized spray throughout the mix. Batch working capacities range from 50 to 6000 liters.
For products having poor flow properties, a shell design having a 70° angle is available upon request.
Convertible models are available for the customer who does not have an immediate requirement for use of an agitator but has the possibility for future applications. This design includes a pre-machined blender idler shaft to accept bearing, seal assembly, and insertion of the agitator assembly. The Idler shaft hub ends are supplied with stainless steel caps and a motor base plate is installed on the support frame for future installation of the agitator drive. At the time of conversion, the agitator assembly complete with bearing and seal assemblies, motor, V-belt drive, and guard are furnished for installation without disrupting the equipment.
